This is a shortform introduction to the various items we manufacture. We also do custom designs. Please ask if you have any special demands. Please remember to order in the winter time where we traditionally have the time to do special orders. Spring and summertime is reserved for stock orders and standard deliveries.

scroll down through the items - click PDF links to get more information
click photos to increase size - they will open in seperate windows
click "ctrl.w" to shut them down
click "alt tab" to switch back to this page

click here to return to etec.dk homepage

Hydrophone XLR preamplifier with 30dB gain. Adapts to any passive hydrophone with BNC connector and converts the hydrophone into XLR connector output signal.
Suits any mixing console and recording device witch has an XLR phantom power supply.

Price euro € 500,- Exclusive of the hydrophone

Hydrophone Amplifier Phantom Powered with XLR connector and BNC input type XLR48-30720

Phantom Powered Hydrophone Amplifier with XLR connector suitable for any type of commersial mixing console or recording device. Matches any type of passive hydrophone with BNC connector.

Operates on standard XLR phantom power 24volt or 48 volt. High signal output due to high supply voltage.
Frequency range from 20Hz to 700kHz. Gain 30dB.

This unit comes in various versions with different
frequency ranges and/or different gain.
May be delivered on request at no extra cost.

We recommend the ZOOM type H4 handheld digital recorder. We also recommend the Teledyne-Reson
TC4033 or TC4034 hydrophones to match this amplifier.


Product sheet
opens in a separate window

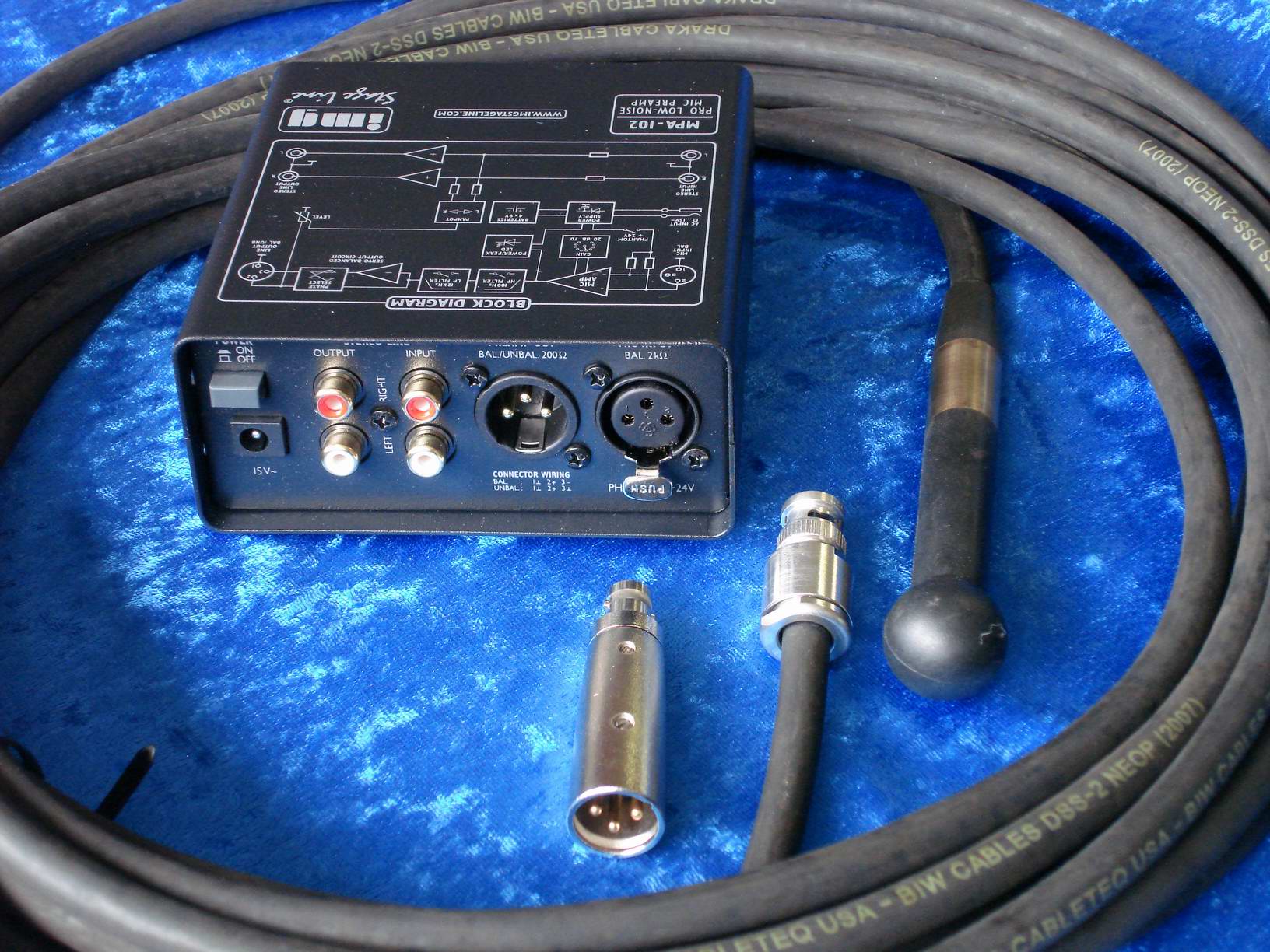

Hydrophone Amplifier
and a Listening Amplifier
MPA102-MK2-TC4033/TC4034/TC4038

Set of Hydrophone Amplifier and a Listening Amplifier. Including a modified version of the amplifier IMG MPA-102 together with a Hydrophone from Teledyne-Reson type TC4033 or TC4034 plus an XLR preamplifier to receive the signal for the passive hydrophone.

Price inclusive hydrophone and preamplifier
euro € 2.000,-

Text same as below exept that the hydrophone here is passive thus requires a preamplifier to convert the high impedance of the hydrophone to match the standard input of the amplifier.

The XLR preamplifier may be purchased separately for other purposes. Suits any mixing console and recording device with phantom power supply.
The type is XLR48-xx as described above.




Product sheet
opens in a separate window

MPA102-MK2-H2R

Set of Hydrophone and a Listening Amplifier.
An modified version of the IMG MPA-102
Phantom powered hydrophone AquarianAudio H2A-XLR

Price inclusive hydrophone euro € 1.000,-

Phantom Powered Hydrophone Amplifier setup with XLR connector suitable for any type of commersial mixing console or redording device.

This setup is a low cost kit especially intended for underwater listening and detection of leakage in water tanks or in pipelines or other kind of audible sound information in liquids.

The MPA-102 amplifier is a stand alone unit with build in batteries and 70dB of gain. It features a 24Volt phantom power supply to drive an active hydrophone equipped with the standard 3pole XLR connector.

High signal output due to a high supply voltage of 4 pcs 9 volt square batteries. The amplifier may also be powered from the included mains powered wall plug AC adaptor.

Frequency range from 10Hz to 50kHz. plus a very high gain of 70dB. High and Low pass filters for emphasizing the listening frequency range. A mixing function to connect with a monitor amplifier or a set of headphones.

Product sheet
opens in a separate window


This unit is compatible with most any type of professional studio recording and reproduction equipment. We recommend the ZOOM type H4 handheld digital recorder to supplement this listening amplifier for recordings and documentation. This device will record the audible range 20hz to 20kHz.

For the wider bandwidth of 10Hz to 50kHz we recommend the audio interface AD converter adaptors from ZOOM. They are designed to be connected to a computer with USB interface for recording. Types in qestion could be the following units which offers up to 192khz of sampling rate :

ZOOM UAC-2 for Windows USB
ZOOM TAC-2 for MAC Thunderbolt
ZOOM F8 for 8 channel high quality multitrack recordings.

Links in question related herewith :

https://www.zoom-na.com/products/production-recording/audio-interfaces/zoom-uac-2-usb-30-audio-converter

https://www.zoom-na.com/products/production-recording/audio-interfaces/zoom-tac-2r-thunderbolt-audio-converter

https://www.zoom-na.com/products/field-video-recording/field-recording/zoom-f8-multitrack-field-recorder#features

http://www.aquarianaudio.com/h2a-xlr-hydrophone.html

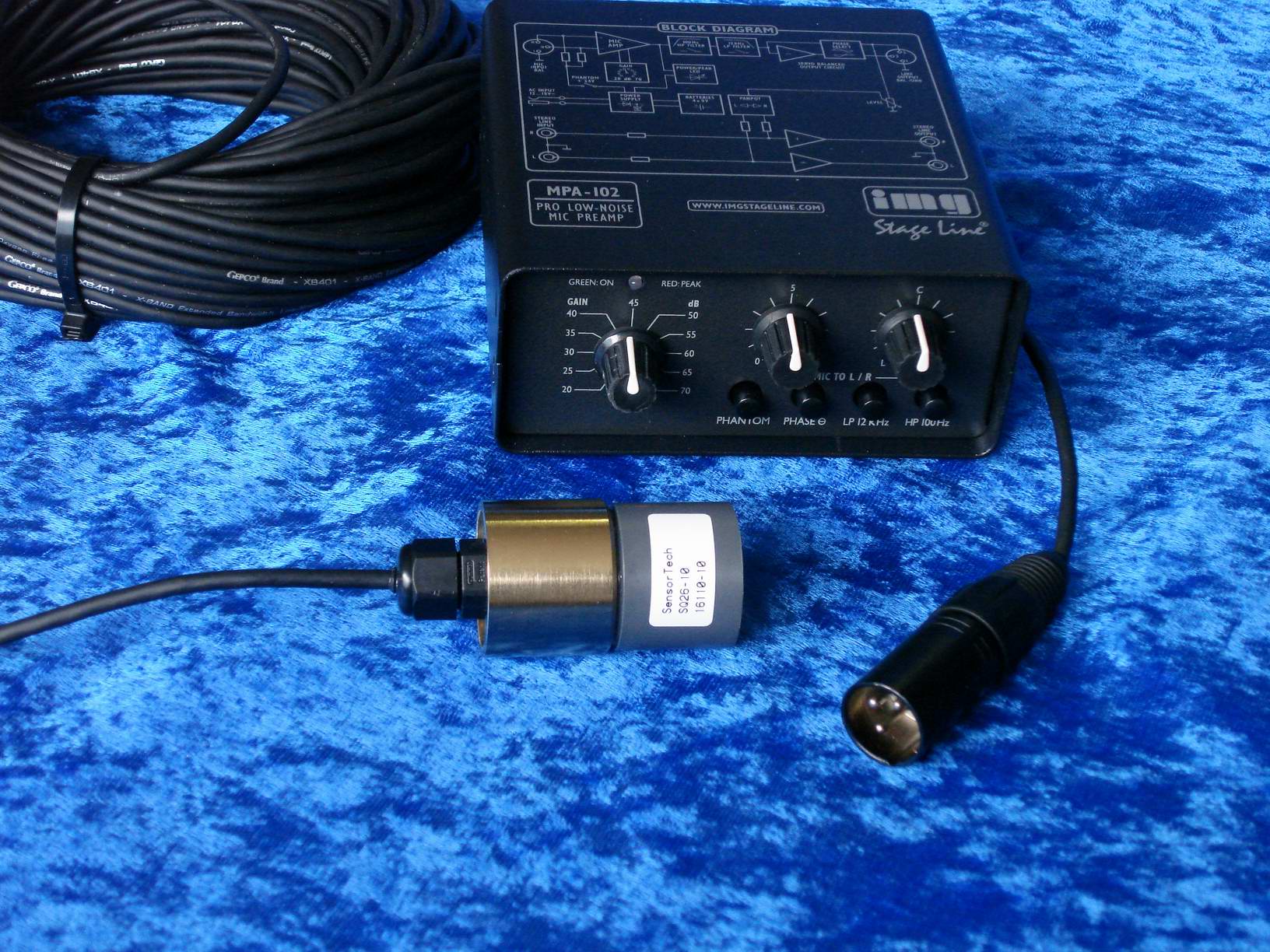

Hydrophone Amplifier
and a Listening Amplifier
MPA102-MK2-SQ26

An etec.dk modified version of the IMG MPA-102
Phantom powered hydrophone SensorTech SQ26-XLR

Price inclusive hydrophone euro € 1.500,-

Text same as above exept that the hydrophone
has a wider frequncy range.


Product sheet
opens in a separate window

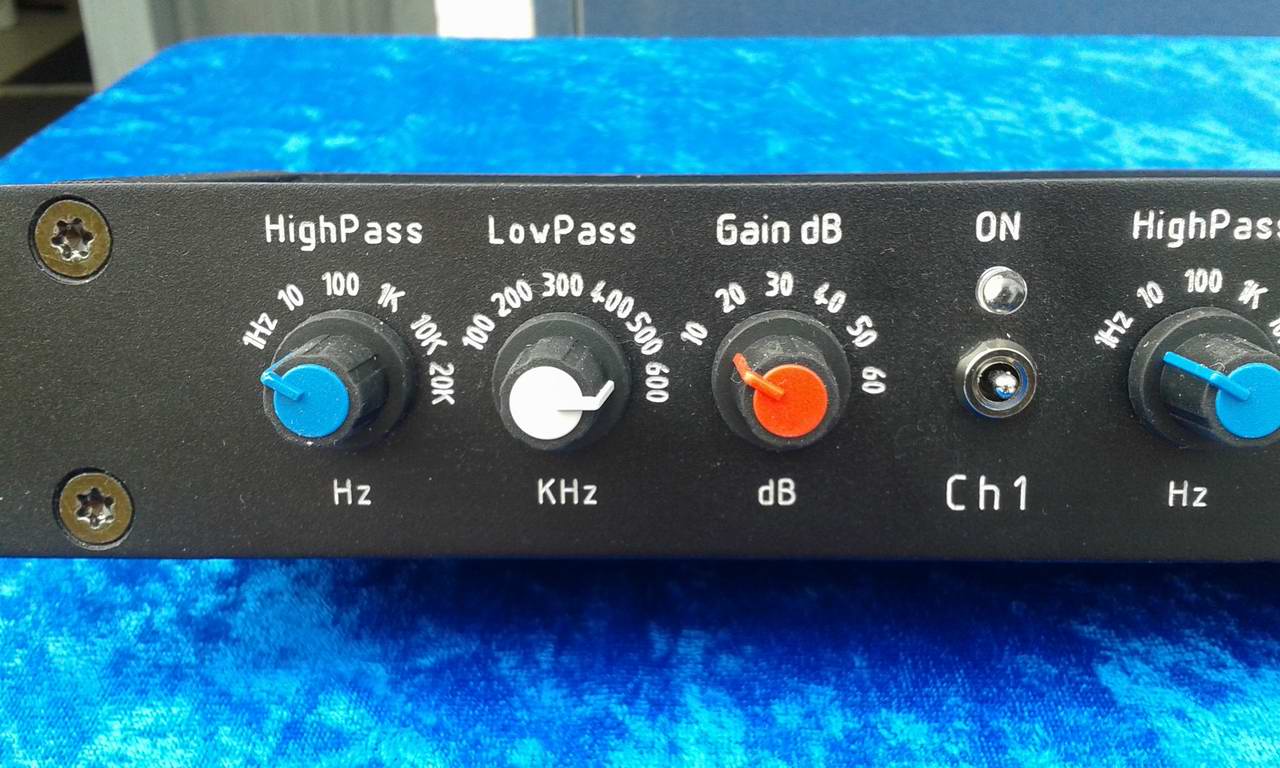

Multichannel Hydrophone Amplifier
type B2204RC

Ultra compact unit with 4 individual high perfor-mance hydrophone amplifiers in a19inch rack with BNC connectors suitable for any type passive of hydrophones.

All amplifiers have individual on/off swithc and gain settings of 10dB to 60dB plus High pass and Low pass filters.

There are 6 steps each on both Hi- and Low pass filters and gain. 1Hz to 600kHz plus 10 to 60dB.

Price for 4 channels complete euro € 1.800,-


Product sheet
opens in a separate window

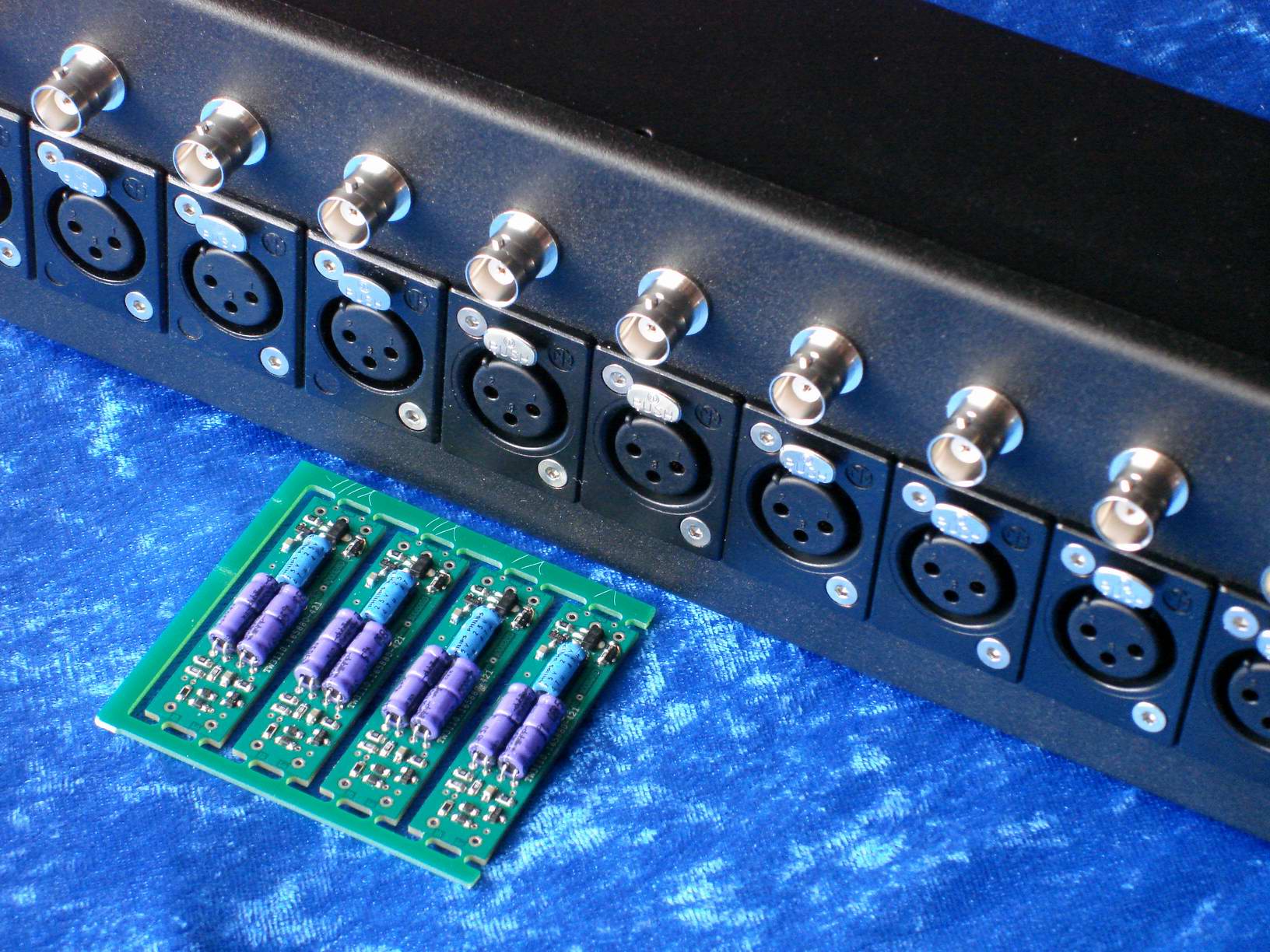

Multichannel Hydrophone Amplifier
B2216RC

Ultra compact unit with 16 individual high performance hydrophone amplifiers in a19inch rack.

Price for 16 channels complete euro € 3.200,-

Lowest possible cost of 16 channels of hydrophone amplifiers. All amplifiers are presetable with gain of 10dB to 60dB and High pass filters and Low pass filters. There are 4 steps each on both Hi- and Low pass filters and gain. Filter responses and gain are to be preset internally by means of circuit jumpers. Settings may be custom configured within the range 10Hz to 700kHz and 10 to 60dB.


Product sheet
opens in a separate window

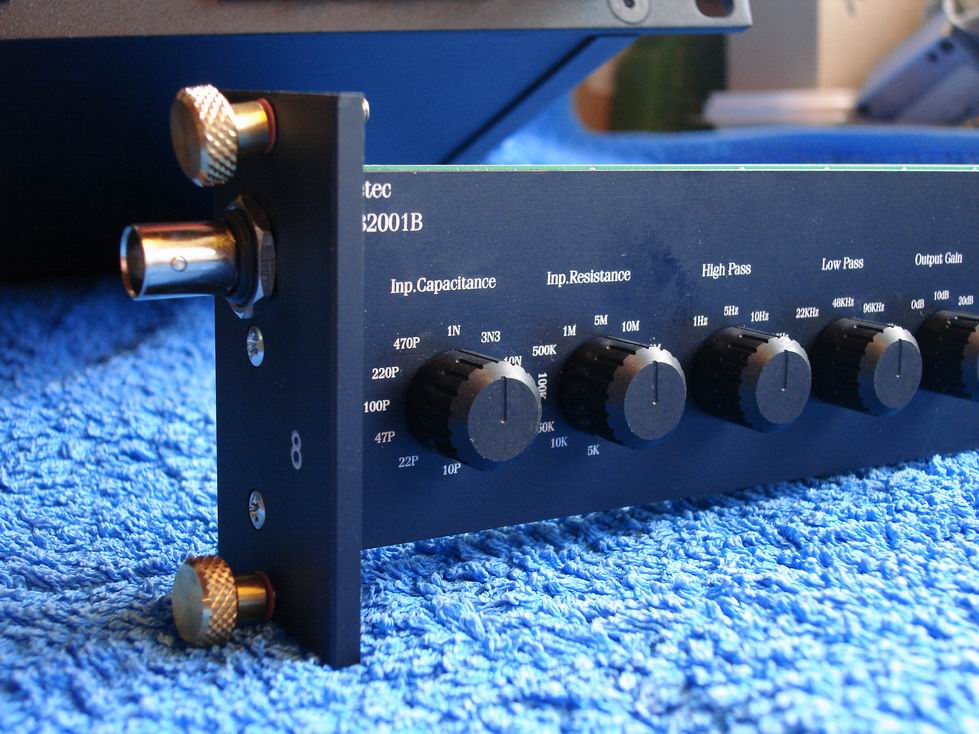

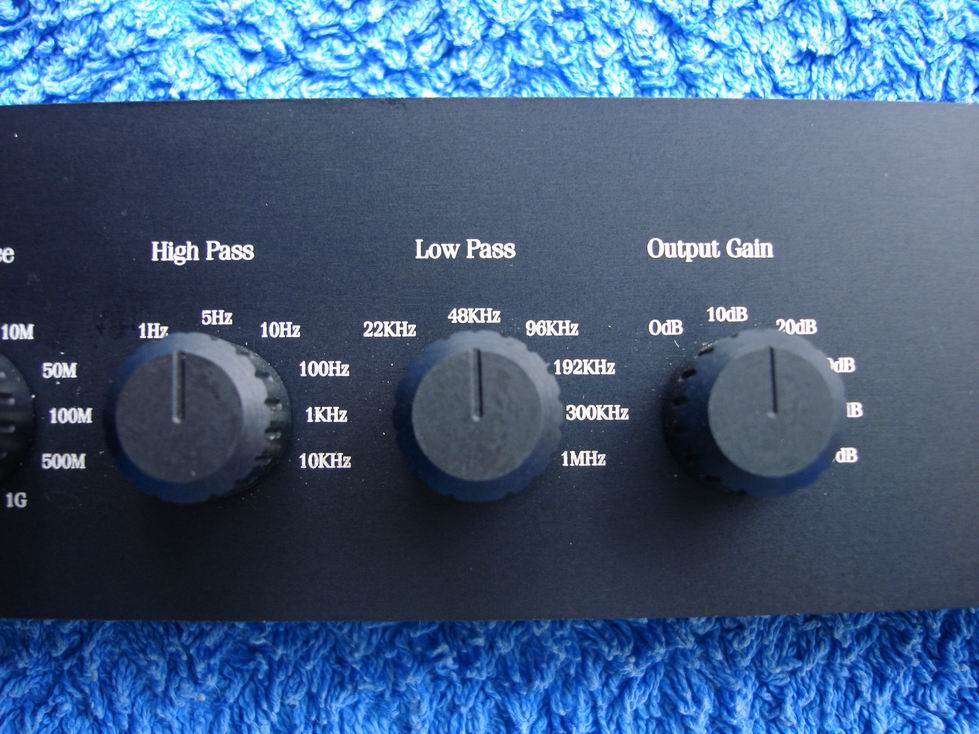

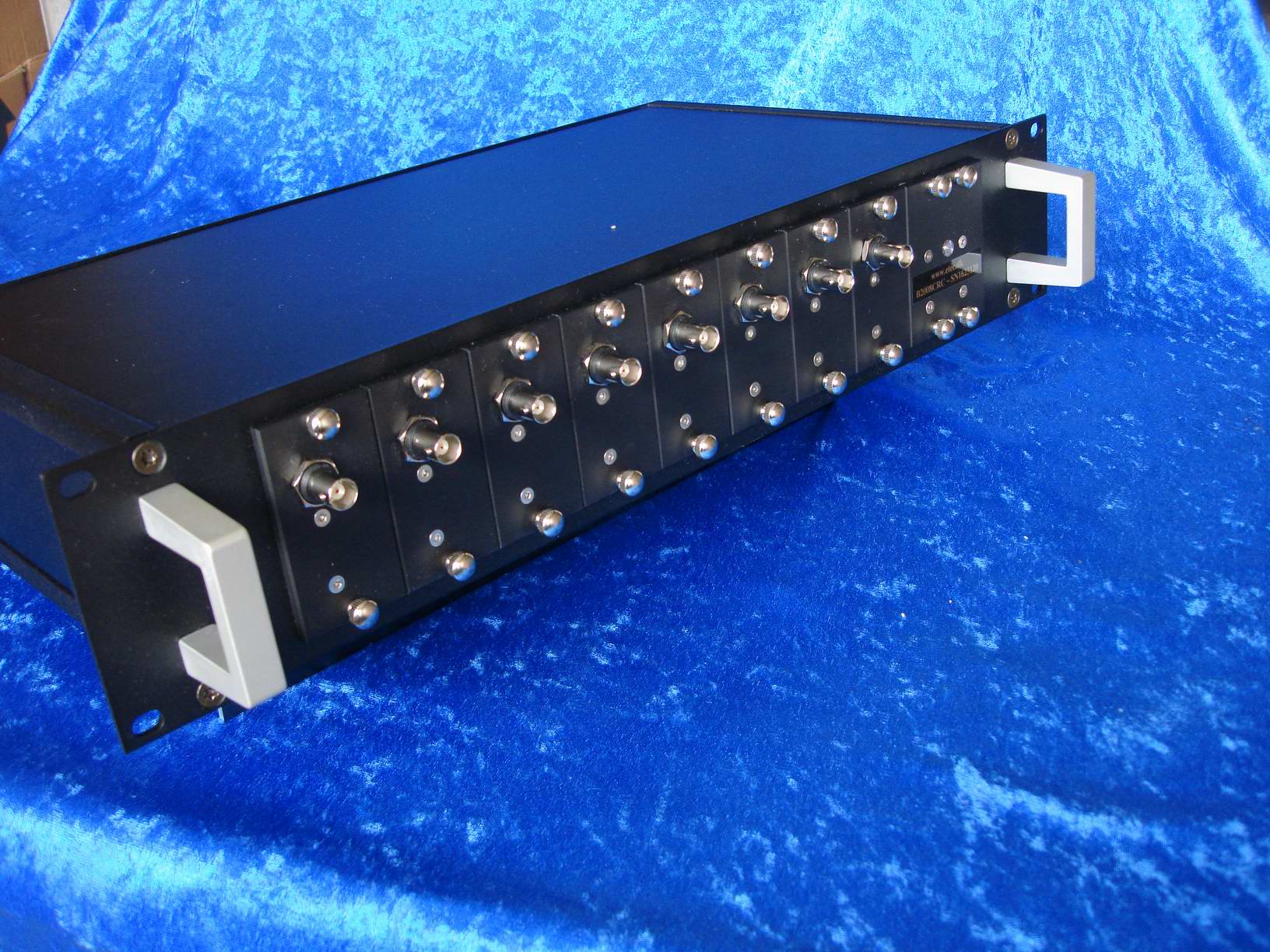

Hydrophone Multichannel Amplifier
B2008RC

Compact unit containing 8 channels of high performance amplifiers in a19inch rack.

May be configured either as a charge- or a voltage amplifier. There are 5 control button switches for : Input capacitance - Input resistance - High pass filter - Low pass filter and Gain Control.

Gain of 90dB may be optainable with this unit.

Price for 8 channels complete euro € 2.800,-


Product sheet
opens in a separate window

Hydrophone Amplifier Multichannel B2008PC

8 channels in a PeliCase 1550

Price euro € 3.000,-
delivery on request only

High sensitive charge input amplifiers will handle all piezoelectric ceramics. Data will be just about the same as for the B2008 19inch rack version - except for the filters which on this unit are selectable 2nd.order or 4th.order both high and low pass filters.


Product sheet
opens in a separate window

Multichannel Hydrophone amplifier type 140301

Price euro € 1.600,- for 10 channels
delivery on request only

Hydrophone Multi Channel Amplifier - Low Cost intended for building in into autonome bouys.
type # 140301A

To be battery supplied 9Volt to 24 volt. Each channel may be switched on/off individually. All channels have controls for Gain and HighPass and LowPass.

This unit may be delivered with various channel counts from 5 to 10 channels


Product sheet
opens in a separate window

Hydrophone Amplifier
with a 9 Volt battery type A2010

Price euro € 600,-



Low Cost Hydrophone Amplifier with BNC connectors in and out. It features a 9Volt battery compartment plus lowpass filter and gain.
Filters and gain to be preset with a screwdriver.
Features :
small size - low cost - low noise - stand alone unit.


Product sheet
opens in a separate window

Hydrophone amplifier
Low cost version - A1001

Price euro € 600,-

A1001 Hydrophone amplifier with high input impedance. Low cost version.

Small Hydrophone amplifier with high pass filter. Intended for building in together with a small battery like a 9Volt square type or a 12Volt battery.
The unit comes including 9V battery powered supply.
Highpass filter and Gain settings may be preset internally with a screwdriver.


Product sheet
opens in a separate window

Hydrophone Amplfier plus Pinger & Sonar detector with 2x9volt batteries A1101

Price euro € 1000,-

A1101 Pinger & Sonar detector with Envelope detector.
Hydrophone amplifier with high input impedance, envelope detector and build-in batteries for Acoustic detection of pingers and sonars.

Applications:
Amplifier with Highpass filter and Gain settings may be operated on the frontpanel and the internal batteries can be tested for the charge condition.
The unit contains an envelope or "click" detector which has a seperate output so the hydrophone signal and the envelope signal may be monitored simultaniously.


Product sheet
opens in a separate window

Pinger & Sonar detector A1101LP - Low profile version for building in.

Price euro € 1100,-
low profile version delivery on request only


Data will be the same as for the prior shown A1101

A1101 Hydrophone Amplifier and Click Detector

Low profile meant for building in into an autonome bouy.






Product sheet
opens in a separate window

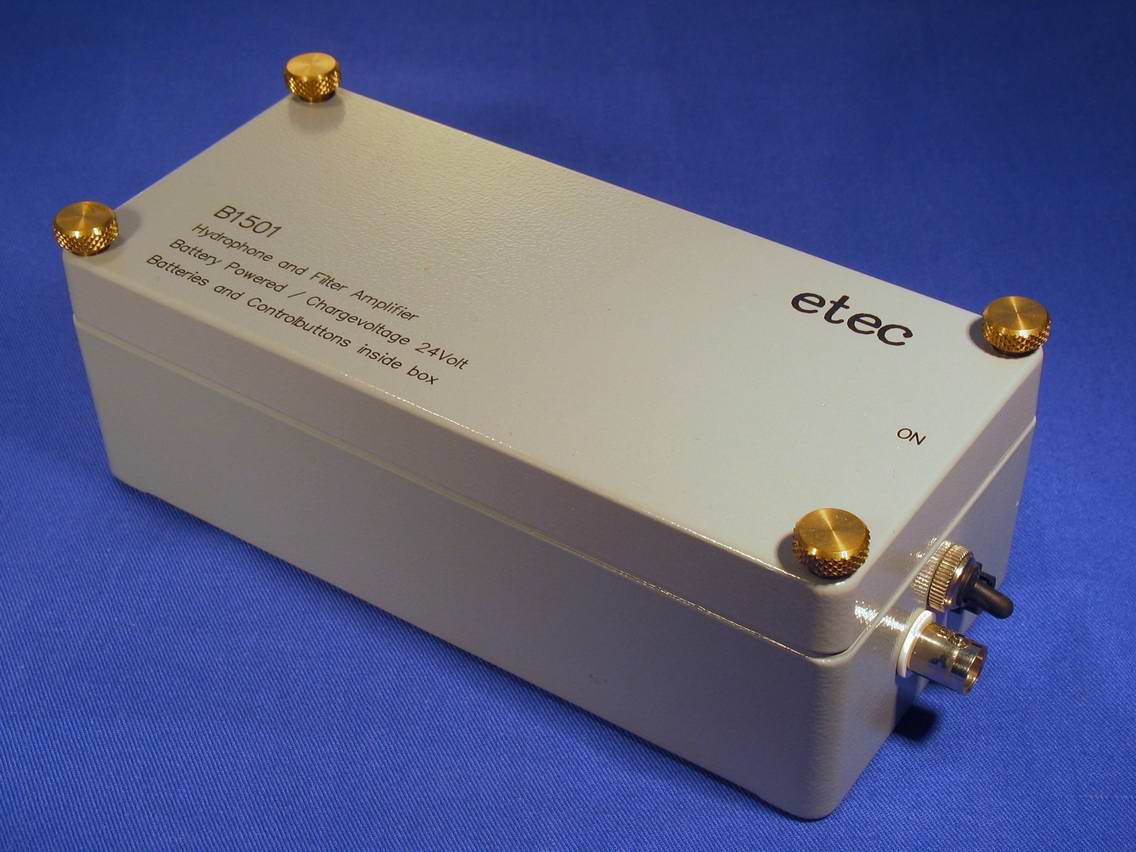

Hydrophone filter-and amplifier with 2x9volt batteries - B1501

Price euro € 1000,-

B1501 Hydrophone amplifier and cable driver with high- and low pass filters and buffered output. Two pcs. 9Volt square battery supply offers 18Volt supply and very high output signal level.

Designed for stationary use in rough climatic invironments or for building in into equipment which does not require frequently access to the amplifiers internal controls. All control buttons are placed inside the box in order to make the unit more watertight.

This unit is state of the art in hydrophone amplifying with extremely low noise and very high output signal level and cable driving capability.


Product sheet
opens in a separate window

Hydrophone Amplifier
1 Channel with Jupiter
or Lemo connector
A2002

Price euro € 2.000,-

Single channel Hydrophone Amplifier with Gain and High and Low pass Filters. Compact unit with build in batteries and charger. Large battery supply offers long operation time.

Expecially designed for Reson hydrophones types : TC4014 or TC4032 or TC4040. Please ask for specific configuration.


Product sheet
opens in a separate window

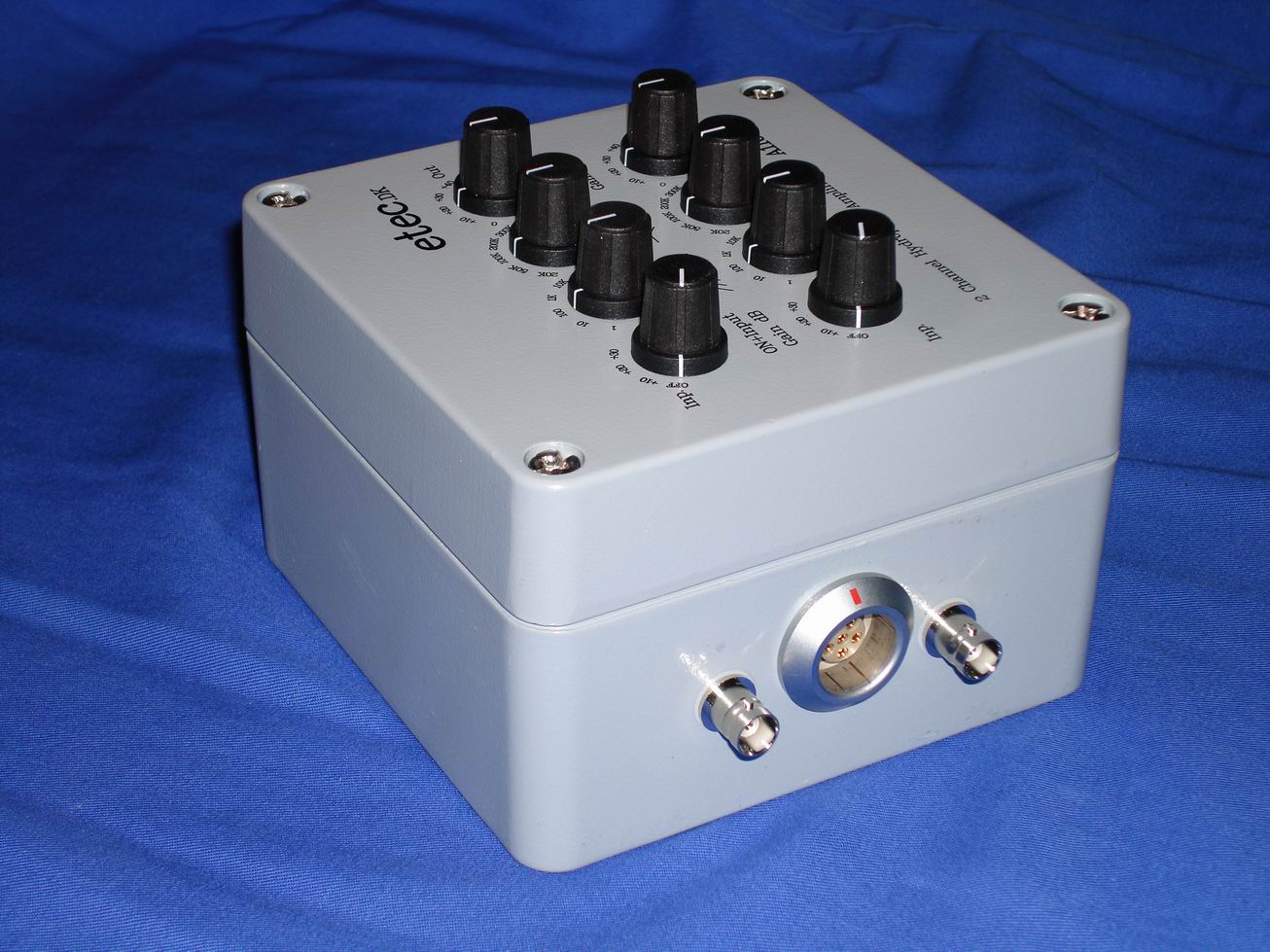

Hydrophone Amplifier 2 Channels - Stand alone unit with 2x12volt batteries typoe A1102

Price euro € 1.400,-

A1102 - 2 Channel Hydrophone Amplifier

Compact unit with build in batteries and charger
2 Channel Hydrophone Amplifier with High and Low pass Filters. BNC connectors in and Out. Large battery supply offers long operation time.


Product sheet
opens in a separate window

Pinger Detector System and long range listening amplifier type PD1102

Price euro € 2.800,-
Amplifier without the hydrophone :

Price euro € 4.200,-

Pinger Detector System
inclusive Reson TC4033 hydrophone
:

PD 1102 - Pinger detector or Sonar Detector is the ultimate Underwater hydrophone Listening Amplifier and Acustic Alarm Detector.
Also called Pinger Detector or Click Detector.

A high sensitive high gain ultra Low noise amplifier with frequency detector and automatic gain control. State of the art in hydrophone amplifying.

Applications:
- fisheries gilnet pinger inspection
- detection of acoustic pinger
- cetacean sound recording
- underwater acoustics and long range listening

- automatic gain control and very high sensitivity
- build in switchable sonar click detector


Product sheet
opens in a separate window

Hydrophone Amplifier 5 channel in a PeliCase 1200 type A1105

Price euro € 1.800,-

A1105 Hydrophone amplifier

5 Channel Hydrophone Amplifier for passive hydrophones with BNC connectors and gain and high pass filters

Low noise / High Gain - in a watertight suitcase.


Product sheet
opens in a separate window

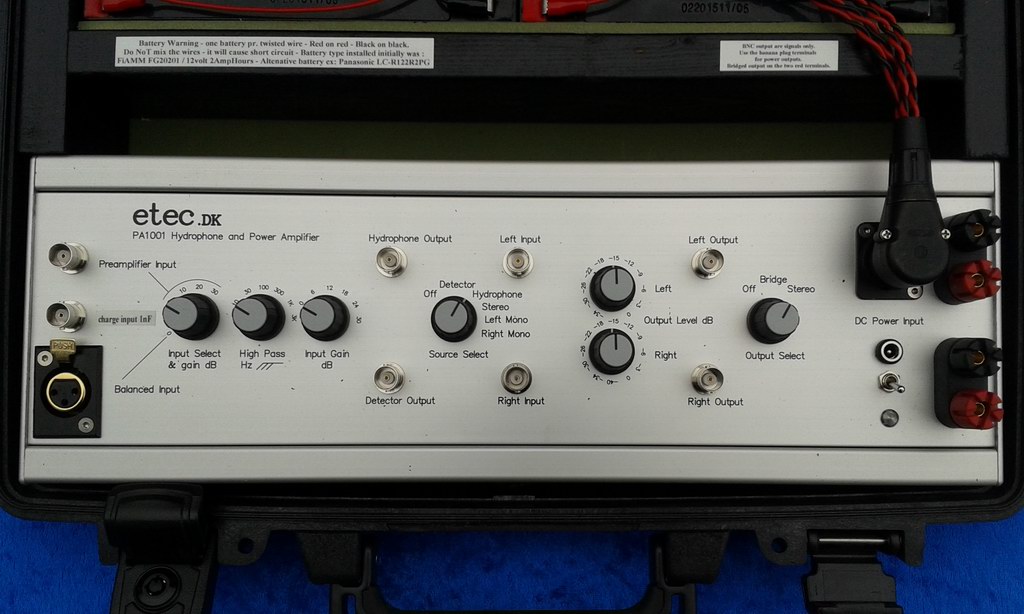

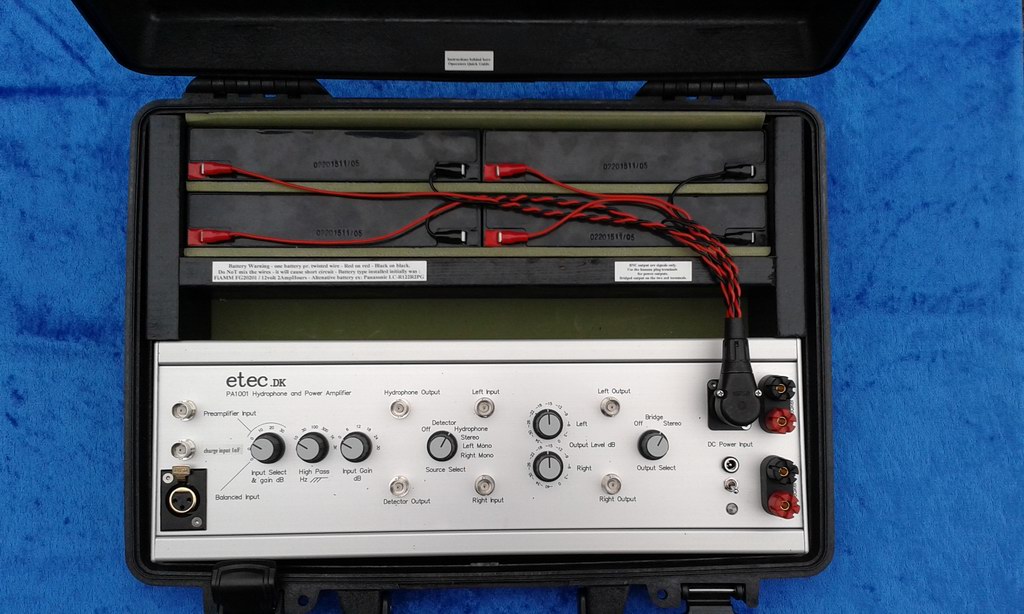

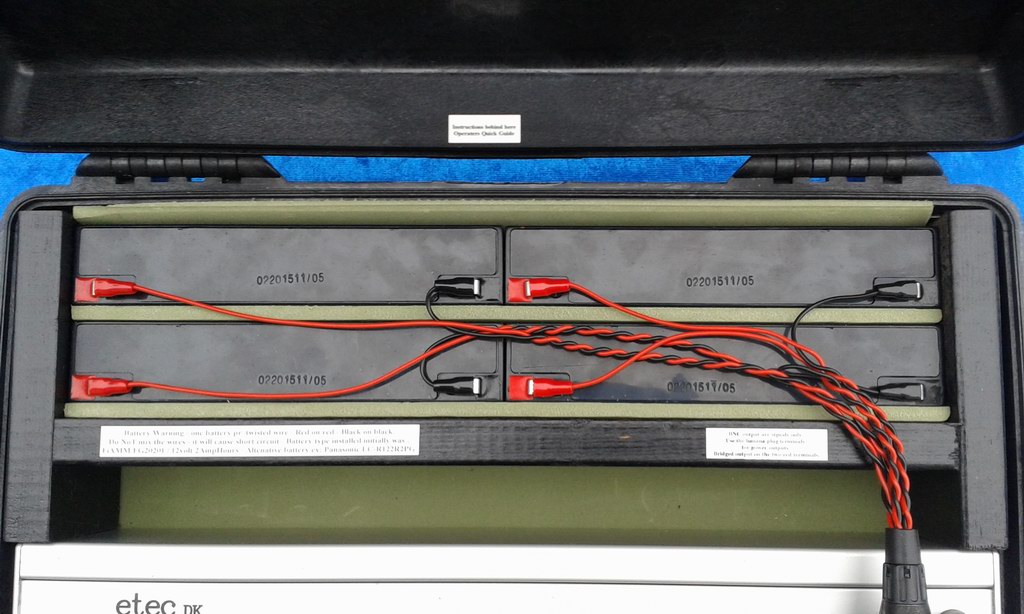

Hydrophone Power Amplifier in a portable Pelicase1470 - PA1001PC

Price. euro € 2.800,-

PA1001 Power amplifier for passive hydrophones and underwater loudspeakers.

Power amplifier for driving an underwater loudspeaker combined with a high input impedance hydrophone preamplifier for ceramic hydrophones.

This amplifier is a stand alone unit with a power amplifier and a hydrophone reciever amplifier complete with buildin envelope or "click" detector and batteries and charger supplied all together in a watertight suitcase.


Product sheet
opens in a separate window



thank you for watching
updated : 2018-02-26
